Purpose
Pulse meters are intended for counting AC/DC voltage signals, generated by additional peripheral devices in order to determine the number of carried out working cycles in automatics systems, e.g. in order to control the number of press strokes, the number of revolutions of a rotating device, the number of components leaving the production line, etc.
Functioning

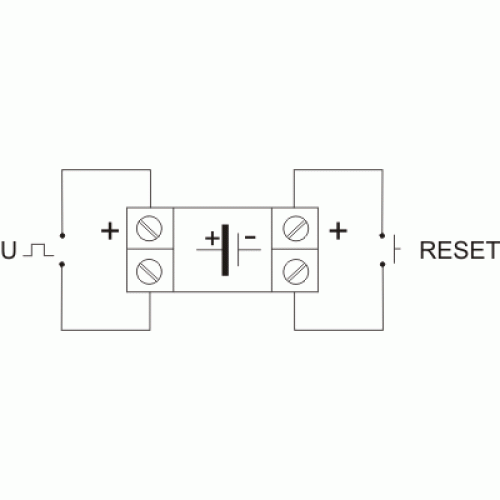

CLI-11T meter is a one-way meter, enabling the counting of pulses from 0 to 999999 range (six digits). It is equipped with RESET input for the connection of an external button, enabling the resetting of the meter state for any value.
Technical data
supply | (non-voltage type) internal battery |
battery life | 10 years |
T input voltage | |
CLI-11T 230V | 110÷240V AC/DC |
CLI-11T 24V | 4÷30V DC |
maximum counting frequency | 200Hz |
RESET input | |
CLI-11T 230V | non-voltage type |
CLI-11T 24V | 4÷30V DC |
display | 8 characters / h 6.7mm |
precision | 1%±1digit |
working temperature | -10÷40°C |
dimensions | 48×24×52mm |
fixing hole | 45×23mm |
Impulsų skaitiklis
- Prekės kodas: CLI-11T
